C8051T610/1/2/3/4/5/6/7
19. Reset Sources
Reset circuitry allows the controller to be easily placed in a predefined default condition. On entry to this
reset state, the following occur:
?
?
?
?
CIP-51 halts program execution
Special Function Registers (SFRs) are initialized to their defined reset values
External Port pins are forced to a known state
Interrupts and timers are disabled
All SFRs are reset to the predefined values noted in the SFR detailed descriptions. The contents of internal
data memory are unaffected during a reset; any previously stored data is preserved. However, since the
stack pointer SFR is reset, the stack is effectively lost, even though the data on the stack is not altered.
The Port I/O latches are reset to 0xFF (all logic ones) in open-drain mode. Weak pullups are enabled dur-
ing and after the reset. For V DD Monitor and power-on resets, the RST pin is driven low until the device
exits the reset state.
On exit from the reset state, the program counter (PC) is reset, and the system clock defaults to the inter-
nal oscillator. The Watchdog Timer is enabled with the system clock divided by 12 as its clock source. Pro-
gram execution begins at location 0x0000.
VDD
Power On
Supply
Monitor
Reset
Px.x
Comparator 0
+
-
Enable
'0'
(wired-OR)
RST
+
Px.x
-
C0RSEF
Missing
Clock
Detector
Reset
Funnel
(one-
shot)
EN
PCA
WDT
(Software Reset)
SWRSF
Low
Frequency
Oscillator
EN
Illegal
EPROM
Operation
Internal
System
Oscillator
Clock
CIP-51
External
Microcontroller
System Reset
EXTCLK
Oscillator
Drive
Clock Select
Core
Extended Interrupt
Handler

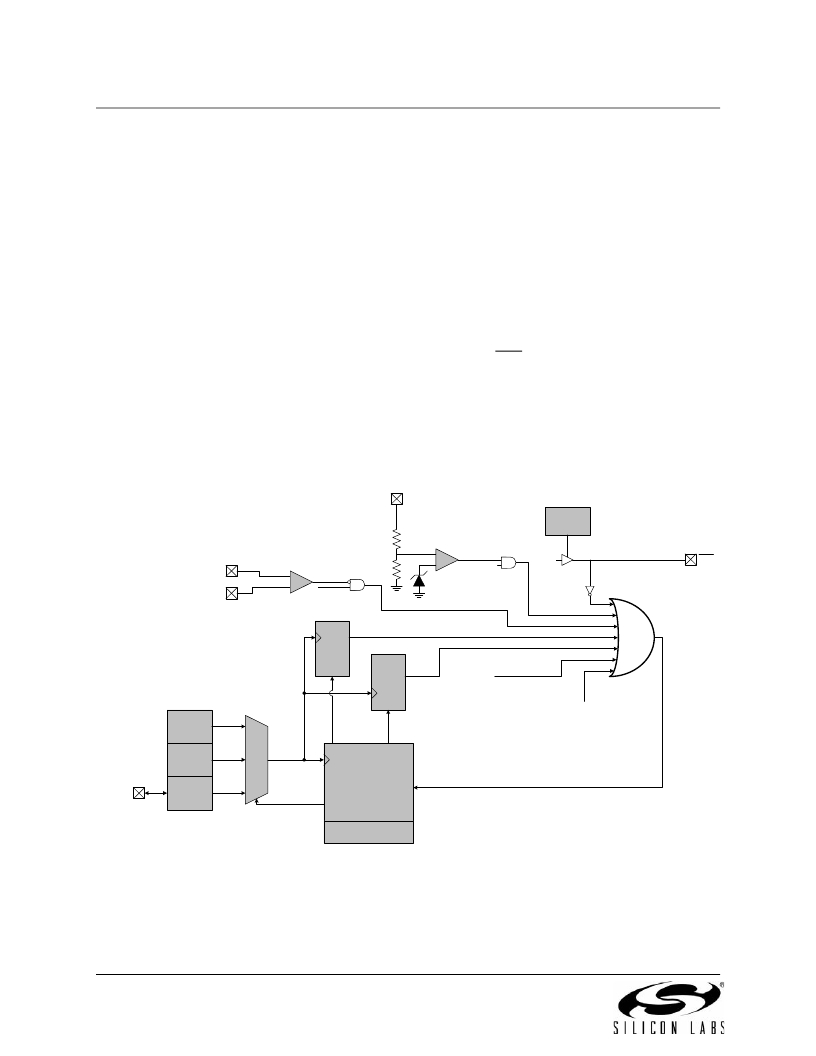

Figure 19.1. Reset Sources
100
Rev 1.1
